40 Amps 220V Power Extension Cord Heavy Duty Welding Cord
Arccaptain Accessories

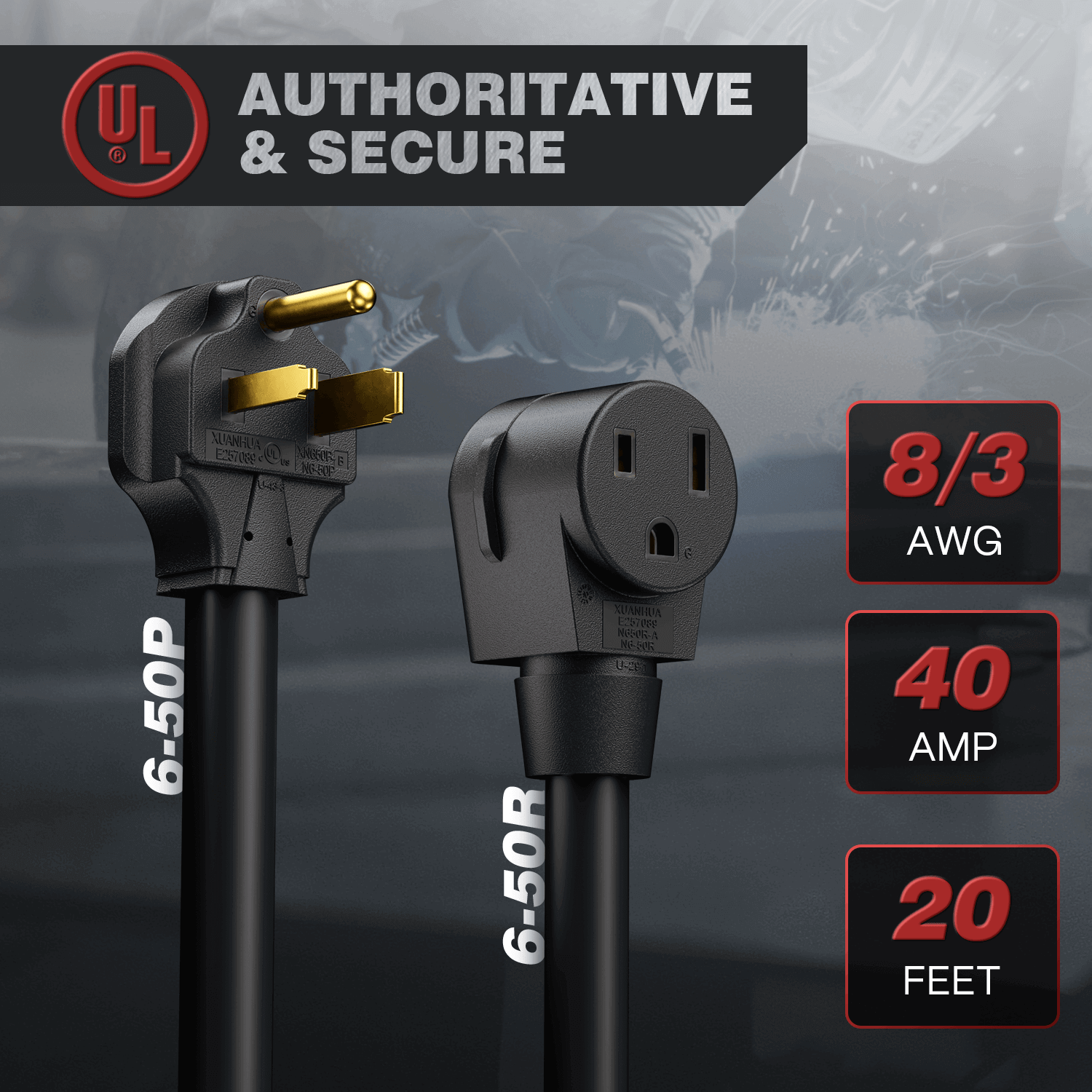

NEMA 6-50 Welder Extension Cord
as Good as the Cord Delivering It
A welder set to 220V and 150A is only running at those numbers if the extension cord between the outlet and the machine can carry that current without resistance loss. The wrong gauge or the wrong length introduces voltage drop that degrades arc stability, reduces effective duty cycle, and trips breakers — and the symptoms show up as welder problems when the cord is the actual cause.
How to Choose
Pick Your Configuration in Three Steps
Look up your Arccaptain model and your operating voltage (110V or 220V) in the tables in Section 4. This tells you the minimum recommended AWG for your specific combination. That number — 8 or 10 — is your gauge.
Measure from your wall outlet to the farthest point your welder will be positioned — plus a few feet of slack. If your measurement is under 20ft, choose 20ft. Under 40ft, choose 40ft. Up to 50ft, choose 50ft. Never go shorter than your actual run distance — a cord under tension at connections is a failure point.
If your measurement puts you between lengths or you're unsure about gauge, size up on both. 8AWG/50ft handles every machine in the Arccaptain lineup at both voltages. It is the universal safe choice — heavier wire than necessary causes no harm; lighter wire than necessary causes real problems.
All Six Options
Gauge by Length — Choose Your Combination
Each row represents one gauge family. Within each gauge, three length options cover short, medium, and long installation runs.
Home garage, short runs, low-power welders. Best performance at this gauge and length combination.
Occasional machine repositioning. Only for machines whose draw is comfortably within 30A at the operating voltage.
Extended home-use reach. Highest voltage drop of any configuration — only for light-duty machines at 220V/240V where draw is low.
Fixed shop outlets near the work area. Minimum voltage drop, maximum stable performance for professional machines.
Workshops, garages, construction sites with frequent machine movement. The most versatile 8AWG configuration.
Large shops, farms, job sites. Full-power delivery at distance — 8AWG keeps voltage drop acceptable even at 50ft under load.
Quick Decision Matrix
Machine Compatibility Guide
Recommended Gauge by Model and Voltage
Find your Arccaptain machine below. The recommended gauge is the minimum for that model at that voltage. Use this gauge at any length — if you're running 50ft with a machine that recommends 8AWG, always use 8AWG regardless of length.
| Model | 110V / 120V | 220V / 240V |
|---|---|---|
| CUT50 | 8 AWG | 10 AWG |
| CUT55 LED | 8 AWG | 10 AWG |
| CUT55 Pro | 8 AWG | 10 AWG |
| CUT55 Prolux | 8 AWG | 8 AWG |
| CUT55 NON-HF | 8 AWG | 8 AWG |
| CUT55 MP | 8 AWG | 8 AWG |
| Model | 110V / 120V | 220V / 240V |
|---|---|---|
| MIG145 Pro | 8 AWG | — |
| MIG160 | 8 AWG | 10 AWG |
| MIG165 | 8 AWG | 10 AWG |
| MIG165 Pro | — | 10 AWG |
| MIG200 | 8 AWG | 10 AWG |
| MIG200 Fit | 8 AWG | 10 AWG |
| MIG250 | — | 8 AWG |
| MIG205 MP | 8 AWG | 8 AWG |
| Model | 110V / 120V | 220V / 240V |
|---|---|---|
| TIG200 | 8 AWG | 8 AWG |
| TIG200P AC DC | 8 AWG | 10 AWG |
| TIG205 Pro | 8 AWG | 10 AWG |
| TIG205P Pro | 8 AWG | 10 AWG |
| Model | 110V / 120V | 220V / 240V |
|---|---|---|
| ARC160 | 10 AWG | 10 AWG |
| ARC200 | 8 AWG | 8 AWG |
| ARC165 Pro | 10 AWG | 10 AWG |
| ARC205 Pro | 8 AWG | 8 AWG |
Reading these tables: Red = 8 AWG required. Dark = 10 AWG sufficient. Dash = that voltage is not supported by this model. When your machine shows different gauges for 110V vs 220V and you run both voltages, always buy 8AWG — it covers both without compromise.
What Goes Wrong
Four Real Consequences of the Wrong Cord
The effects of an undersized extension cord are consistent and predictable. They're also frequently blamed on the welder itself — which makes them worth knowing in advance.
Complete Specifications
All Six Configurations — Full Specs
| Configuration | Gauge | Length | Rated Current | Best For |
|---|---|---|---|---|
| 10AWG / 20ft | 10AWG | 20ft (6m) | 30A | Low-power welders, short home garage or shop runs at 110V or 220V |
| 10AWG / 40ft | 10AWG | 40ft (12m) | 30A | Occasional repositioning for home users; not for sustained high-power operation |
| 10AWG / 50ft | 10AWG | 50ft (15m) | 30A | Extended reach for light-duty machines only; not suitable for high-power welders at this length |

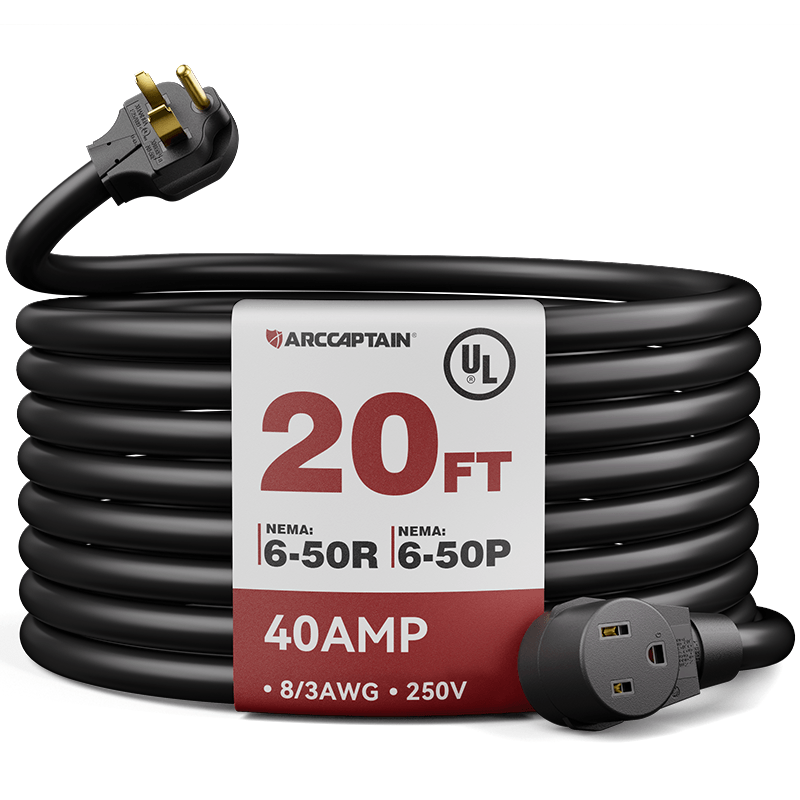

| 8AWG / 20ft | 8AWG | 20ft (6m) | 40A | Mid- to high-power welders at short distances — minimum voltage drop, maximum stability |

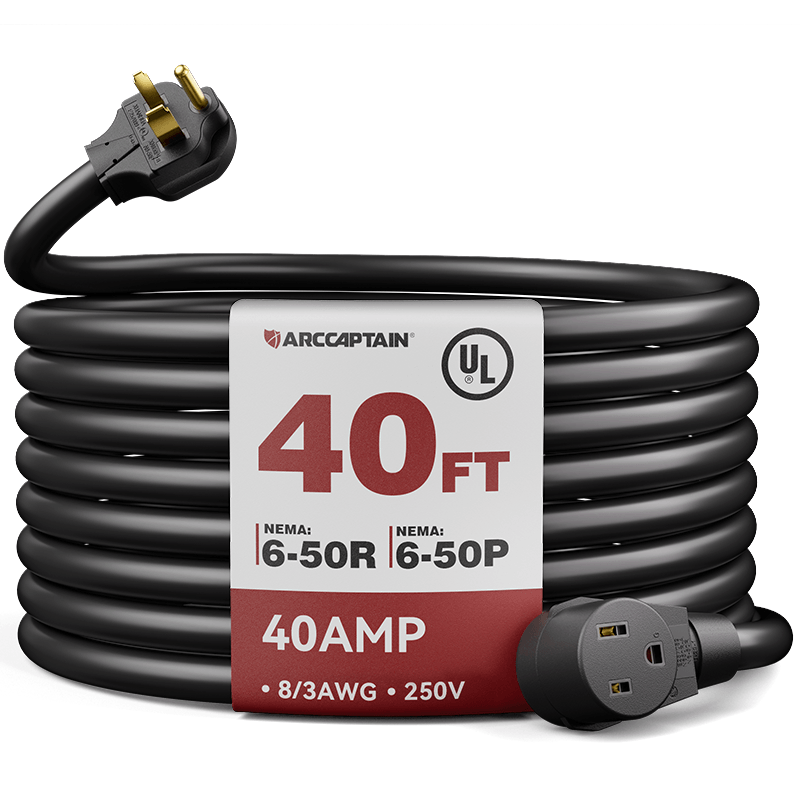

| 8AWG / 40ft | 8AWG | 40ft (12m) | 40A | Workshops, construction sites, farms — frequent machine movement without current capacity sacrifice |

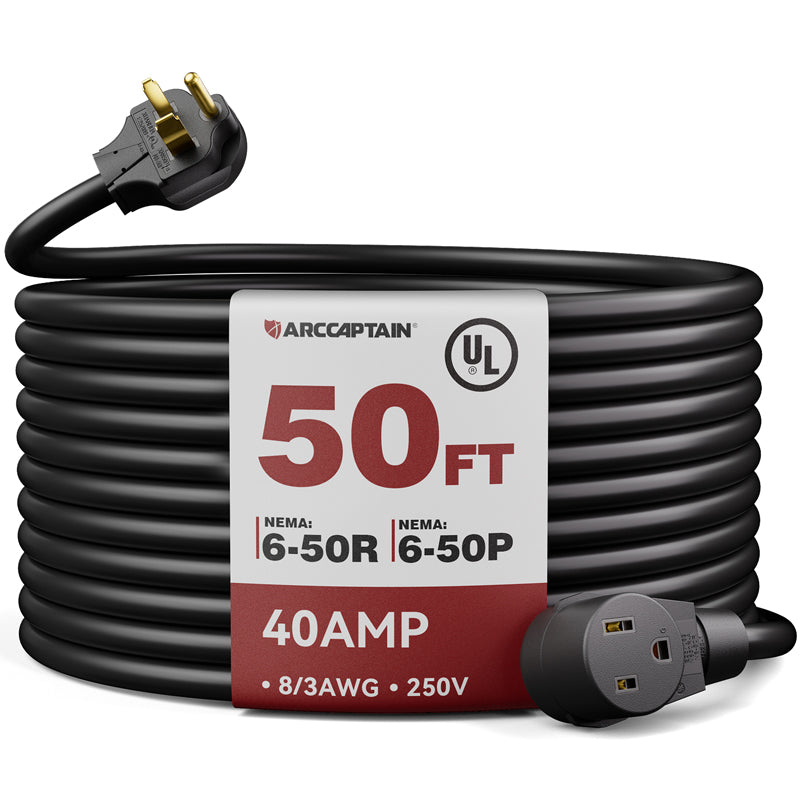

| 8AWG / 50ft | 8AWG | 50ft (15m) | 40A | Maximum reach for high-power machines — stable, full-rated performance over long distances |

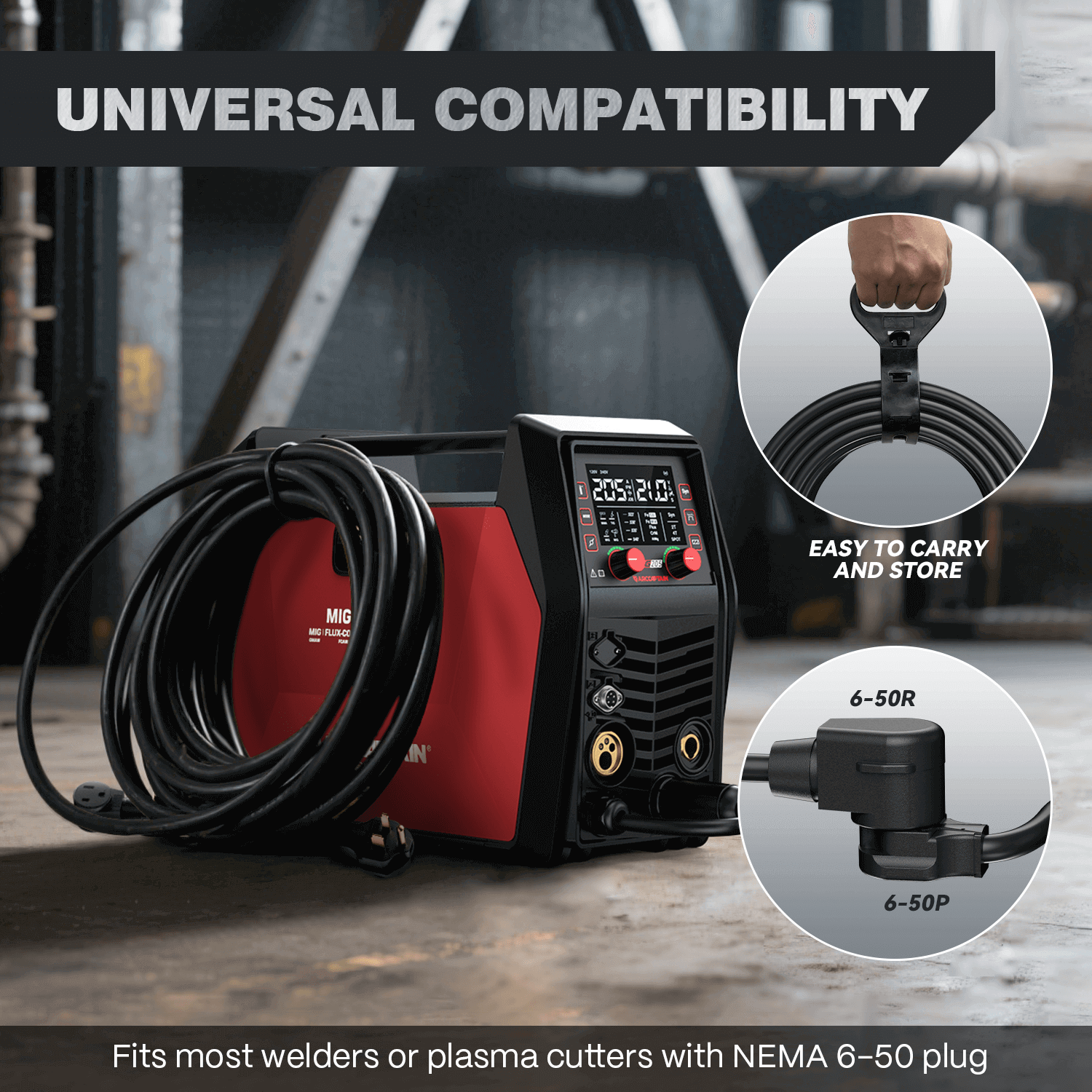

Outlet type reminder: These cords use a NEMA 6-50 plug — the standard 240V / 50A receptacle for welders in North America. Verify your wall outlet is NEMA 6-50 before ordering. NEMA 6-30 (30A) and NEMA 14-50 (four-prong) outlets will not accept this plug. A licensed electrician can install a NEMA 6-50 receptacle if your panel supports a dedicated 50A circuit.
